A wooden lean-to pergola with a 4x6 m base, fixed to the house wall on one side and standing on posts on the other. The single-slope metal roof runs away from the wall, and all three outer sides stay open.

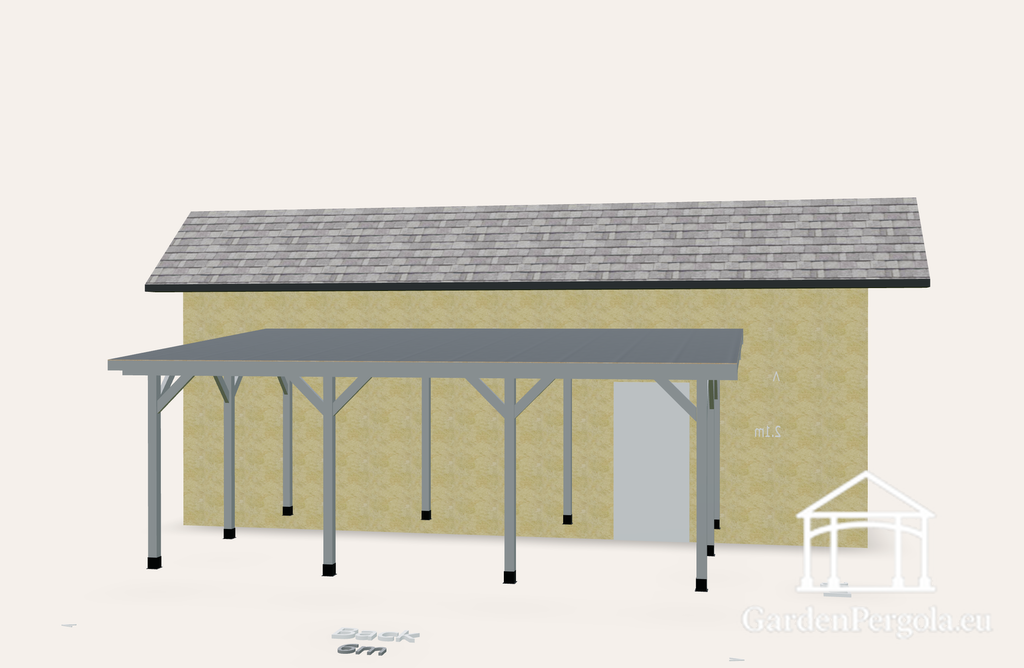

The pictures are 3D visualisations from our constructor, not photos of a finished building.
Key specs
- Size (outer base) 4 x 6 m, 24 m²
- Roof single slope, anthracite metal click-profile sheets (RAL 7016)
- Floor none, it stands over an existing patio or paving
- Walls none, three open sides
- Colour light grey
Price
From 2,600 EUR incl. VAT for this exact configuration, as calculated by the 3D constructor. The live price is shown at the top of this page. Delivery and installation are quoted separately.
Materials
- Posts and frame beams 95x95 mm timber
- Roof structure 45x95 mm timber under metal sheets
- All wood planed and painted with protective paint
Build time
Most objects are installed in one day. We can deliver the kit for self assembly (instructions and all screws included) or install it for you; ask us for an installation offer through the contact page.
Good for
- A covered patio or terrace right outside the back door
- An outdoor dining place that stays dry in rain
- Dry storage for bikes or garden furniture along the house wall
Recommendations
- Check what the house wall is made of before fixing the pergola to it; a timber or brick wall needs different fixings.
- Leave room under the eaves and gutters of the house so the new roof can slope away below them.
- For a wooden floor, railings or a side wall against wind, switch them on in the constructor.
- Check local rules for structures attached to a house before ordering; they often differ from free-standing ones.
Edit this design in the 3D constructor to change the size, walls, roof or colour. The price updates as you go.
